CT-804715
加入購物車
2D下載

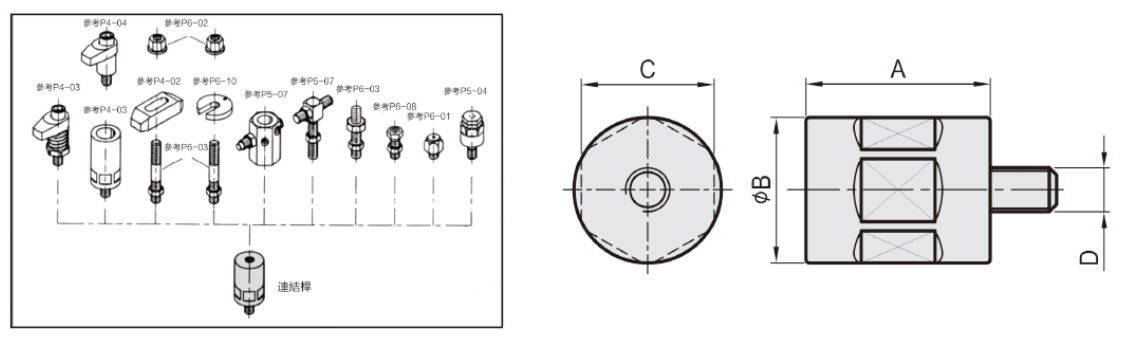

訂貨編號 | A | B | C | D | KG |
CT-804715 | 50 | 40 | 36 | M12 | 0.45 |
產品規格
| MODEL NO | 長 | 寬 | 高 | KG | 2D | 3D | ||||||||||||
|
CT-804715 |
40 | 40 | 50 | 0.45 |
download
|
download
|
||||||||||||
|
CT-804716
CT-804716
|
40 | 40 | 65 | 0.59 |
download
|
download
|
||||||||||||
|
CT-804717
CT-804717
|
40 | 40 | 80 | 0.74 |
download
|
download
|
||||||||||||
|
CT-804718
CT-804718
|
50 | 50 | 50 | 0.72 |
download
|
download
|
||||||||||||
|
CT-804719
CT-804719
|
50 | 50 | 65 | 0.84 |
download
|
download
|
||||||||||||
|
CT-804720
CT-804720
|
50 | 50 | 80 | 1.20 |
download
|
download
|
產品概述
材質 | 熱處理 | 表面 | 用途 | |
S45C | HRC 40° | 染黑處理 | 支持件與夾持件延長或加高之用 | |
